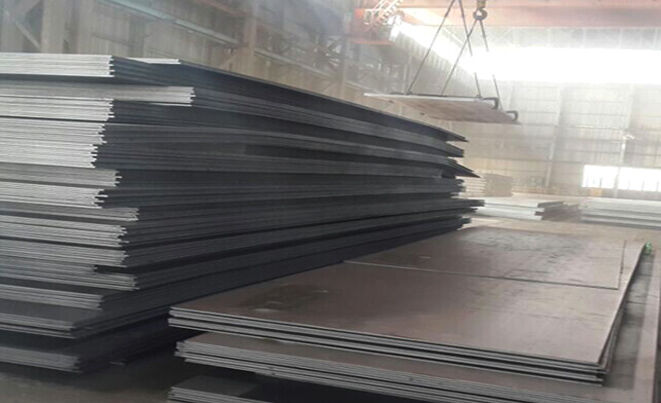

CCS shipbuilding steel plate

CCS shipbuilding plate grade AQ DQ EQ FQ AH EH FH 36 40 47 51 63 70 chemical and mechanical properties

E-mail

Chat Now

PRODUCT CENTER

Weather Resistant Steel

Boiler Pressure Vessel Steel

Shipbuilding Steel Plate

Wear Resistant Steel Plate

Hight Strength Low Alloy Steel

Carbon Steel plate

Galvanized color coating

Checkered Steel Plate

Alloy Steel Plate

Steel rail train track

JIYUE STEEL

FILL THE FORM FOR ANY QUESTIONS

Let us know what you need

Overview

Product introduction

CCS Shipbuilding Plate

CCS Grade FQ70 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.18	0.55	1.60	0.020	0.020	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
690	770-940	14

CCS Grade EQ70 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.20	0.55	1.70	0.025	0.025	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
690	770-940	14

CCS Grade DQ70 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.21	0.55	1.70	0.035	0.035	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
690	770-940	14--16

CCS Grade AQ70 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.21	0.55	1.70	0.030	0.030	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
690	770-940	14

CCS Grade EQ63 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.20	0.55	1.70	0.025	0.025	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
620	720-890	15

CCS Grade FQ63 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.18	0.55	1.60	0.020	0.020	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
620	720-890	15

CCS Grade AQ63 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.21	0.55	1.70	0.030	0.030	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
620	720-890	15

CCS Grade EQ56 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.20	0.55	1.70	0.025	0.025	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
550	670-830	16

CCS Grade FQ56 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.18	0.55	1.60	0.020	0.020	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
550	670-830	16

CCS Grade AQ56 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.21	0.55	1.60	0.030	0.030	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
550	670-830	16

CCS Grade EQ51 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.20	0.55	1.70	0.025	0.025	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
500	610-770	16

CCS Grade FQ51 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.18	0.55	1.60	0.020	0.020	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
500	610-770	16

CCS Grade AQ51 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.21	0.55	1.70	0.030	0.030	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
500	610-770	16

CCS Grade EQ47 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.20	0.55	1.70	0.025	0.025	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
460	570-720	17

CCS Grade FQ47 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.18	0.55	1.60	0.020	0.020	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
460	570-720	17

CCS Grade AQ47 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	N max.
0.21	0.55	1.70	0.030	0.030	0.020

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
460	570-720	17

Technical data

CCS Grade EH40 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	Als	Nb	V	Ti max.	Cu max.	Cr max.	Ni max.	Mo max.	N max.
0.18	0.50	0.90-1.60	0.025	0.025	0.015	0.02-0.05	0.05-0.10	0.02	0.35	0.20	0.40	0.08	-

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
390	510-660	20

CCS Grade FH40 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	Als	Nb	V	Ti max.	Cu max.	Cr max.	Ni max.	Mo max.	N max.
0.16	0.50	0.90-1.60	0.020	0.020	0.015	0.02-0.05	0.05-0.10	0.02	0.35	0.20	0.80	0.08	0.009

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
390	510-660	20

CCS Grade AH40 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	Als	Nb	V	Ti max.	Cu max.	Cr max.	Ni max.	Mo max.	N max.
0.18	0.50	0.90-1.60	0.030	0.030	0.015	0.02-0.05	0.05-0.10	0.02	0.35	0.20	0.40	0.08	-

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
390	510-660	20

CCS Grade EH36 Shipbuilding Steel Plate

C max	Si max	Mn	P max	S max	Als	Nb	V	Ti max.	Cu max.	Cr max.	Ni max.	Mo max.	N max.
0.18	0.50	0.90-1.60	0.025	0.025	0.015	0.02-0.05	0.05-0.10	0.02	0.35	0.20	0.40	0.08	-

Yield Strength (MPa) min.	Tensile Strength (MPa)	Elongation min. %
355	490-630	21

CCS/E Normal Strength Max Chemical Composition in Hot-rolled

Element	CCS E Max %	Element	CCS E Max %
C	0.21	Ni
Mn	0.60	Mo
Si	0.1-0.35	Al
S	0.035	Nb
P	0.035	V
Cu		Ti
Cr		N

Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%
CCS/E Normal strength property in Hot-rolled

Grade	Thickness	Yield Strength	Tensile Strength	Elongation	Impact Energy
(mm)	MPa (min)	MPa	% (min)	(KV J) (min)
				-20 degree
CCS E	8-240	235	400-520	22	27J

Note: the impact energy under less 50mm thickness; longitudinal min impact energy

CCS/D Normal Strength Max Chemical Composition in Hot-rolled

Element	CCS D Max %	Element	CCS D Max %
C	0.21	Ni
Mn	0.60	Mo
Si	0.1-0.35	Al
S	0.035	Nb
P	0.035	V
Cu		Ti
Cr		N

Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

CCS/D Normal strength property in Hot-rolled

Grade	Thickness	Yield Strength	Tensile Strength	Elongation	Impact Energy
(mm)	MPa (min)	MPa	% (min)	(KV J) (min)
				-20 degree
CCS D	8-240	235	400-520	22	27J

Note: the impact energy under less 50mm thickness; longitudinal min impact energy

CCS/B Normal Strength Max Chemical Composition in Hot-rolled

Element	CCS B Max %	Element	CCS B Max %
C	0.21	Ni
Mn	0.80	Mo
Si	0.35	Al
S	0.035	Nb
P	0.035	V
Cu		Ti
Cr		N

Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

CCS/B Normal strength property in Hot-rolled

Grade	Thickness	Yield Strength	Tensile Strength	Elongation	Impact Energy
(mm)	MPa (min)	MPa	% (min)	(KV J) (min)
				0 degree
CCS B	8-240	235	400-520	22	27J

Note: the impact energy under less 50mm thickness; longitudinal min impact energy

CCS/A Normal Strength Max Chemical Composition in Hot-rolled

Element	CCS A Max %	Element	CCS A Max %
C	0.21	Ni
Mn	2.5*C MIN	Mo
Si	0.50	Al
S	0.035	Nb
P	0.035	V
Cu		Ti
Cr		N

Crack Sensitivity: Pcm = (C+Si/30+Mn/20+Cu/20+Ni/60+Cr/20+Mo/15+V/10+5B)%
Carbon Equivalent: Ceq = 【C+Mn/6+(Cr+Mo+V)/5+(Ni+Cu)/15】%

CCS/A Normal strength property in Hot-rolled

Grade	Thickness	Yield Strength	Tensile Strength	Elongation	Impact Energy
(mm)	MPa (min)	MPa	% (min)	(KV J) (min)
				20 degree
CCS A	8-240	235	400-520	22

Note: the impact energy under less 50mm thickness; longitudinal min impact energy

About us

Founded in 2014, Jiyue Steel Co., Ltd. initially focused on providing high-quality steel for the rapid development of China's infrastructure. Based on the advantages of steel resources and good reputation in the domestic market, combined with the huge demand for steel products in the international market, the company started its international business in 2016 and successfully passed the ISo9001:2008 quality management system certification.

With high quality steel products and professional services, Jiyue has won international praise in infrastructure, shipbuilding, petroleum and other industries, and gradually grew into a shining star in the steel export industry. With the exploration and innovation of the company, gradually formed the advantages of steel plate products, and established its own machining center, in order to meet the diversified requirements of customers.

Packaging & shipping

Packaging and loading:

Packaging: According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust.

Loading: We use the wooden pallet,triangular wood to fix the coil,and the steel wire rope to hold on the both side. That can prevent from the crush injury effectively.
