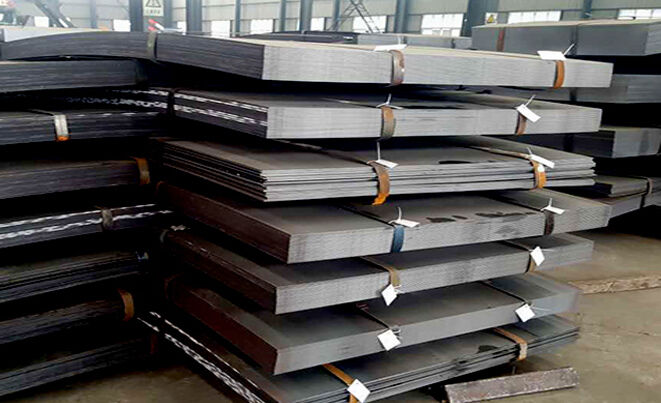

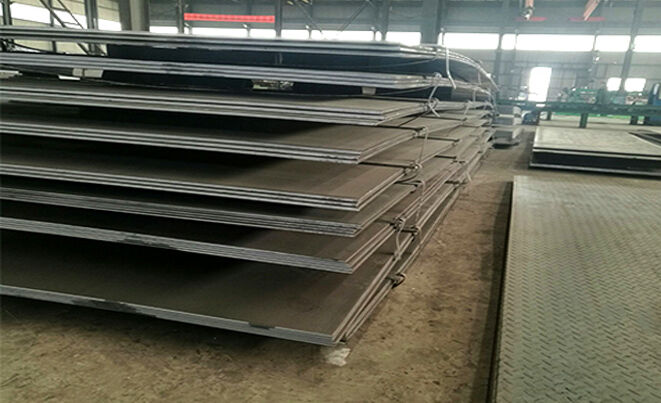

ASTM A588 / A588M Steel

Standard specification for high-strength low-alloy structural steel, up to 50 ksi [345 MPa] minimum yield point, with atmospheric corrosion resistance.

E-mail

Chat Now

PRODUCT CENTER

Weather Resistant Steel

Boiler Pressure Vessel Steel

Shipbuilding Steel Plate

Wear Resistant Steel Plate

Hight Strength Low Alloy Steel

Carbon Steel plate

Galvanized color coating

Checkered Steel Plate

Alloy Steel Plate

Steel rail train track

JIYUE STEEL

FILL THE FORM FOR ANY QUESTIONS

Let us know what you need

Overview

Product introduction

Standard specification for high-strength low-alloy structural steel, up to 50 ksi [345 MPa] minimum yield point, with atmospheric corrosion resistance.
The required ASTM G101 Corrosion Resistance Index must be ≥ 6.0. In addition to the typical application in welded bridges and buildings, the specification is also commonly used in passenger rail cars.

The specifications:
Thickness: 3mm--150mm
Width: 30mm--4000mm
Length: 1000mm--12000mm

Standard: ASTM EN10025 JIS GB

Technical Data

ASTM A588 Chemical Composition

A588 Steel Composition
	Grade A	Grade B	Grade K	Grade C
Carbon	0.19%	0.2%	0.17%	0.17%
Manganese	0.8-1.25%	0.75-1.35%	0.50-1.20%	0.50-1.20%
Phosphorus	0.03%	0.03%	0.03%	0.03%
Sulfur	0.03%	0.03%	0.03%	0.03%
Silicon	0.30-0.65%	0.15-0.50%	0.25-0.50%	0.25-0.50%
Nickel	0.4%	0.5%	0.4%	0.4%
Chromium	0.4-0.65%	0.4-0.7%	0.4-0.7%	0.4-0.7%
Molybdenum	...	...	0.1%	0.1%
Copper	0.25-0.4%	0.2-0.4%	0.3-0.5%	0.3-0.5%
Vanadium	0.02-0.10%	0.01-0.10%	...
Columbium	...	...	0.005-0.05%	0.005-0.05%

Plate Properties

Grade A588 Properties

GRADE	THICKNESS	TENSILE KSI	YIELD KSI	% ELONG. MIN
				8"	2"
A588	.75"THRU 4"	70MIN	50 YP MIN	16	19
	>4"THRU 4"	67MIN	46 YP MIN	-
	>5"THRU 8"	63MIN	42 YP MIN

Properties
Tensile: 70 ksi min (4 inch and under), 67 ksi min (4-5) 63 ksi min (Over 5-8)
Yield: 50 ksi min (4 and under), 46 ksi min (4- 5) 42 ksi min (Over 5-8)
Elongation: 16 percent min in 8 inch 19 percent min in 2 inch (for plates wider than 24 inch)in sheet.
Typical Uses
This steel can be left unpainted making it ideal application including bridges, buildings, and other structures.

About us

Founded in 2014, Jiyue Steel Co., Ltd. initially focused on providing high-quality steel for the rapid development of China's infrastructure. Based on the advantages of steel resources and good reputation in the domestic market, combined with the huge demand for steel products in the international market, the company started its international business in 2016 and successfully passed the ISo9001:2008 quality management system certification.

With high quality steel products and professional services, Jiyue has won international praise in infrastructure, shipbuilding, petroleum and other industries, and gradually grew into a shining star in the steel export industry. With the exploration and innovation of the company, gradually formed the advantages of steel plate products, and established its own machining center, in order to meet the diversified requirements of customers.

Packaging & shipping

Packaging and loading:

Packaging: According to customers' needs, use wrapping paper. If the transportation period exceeds 10 days or encounters special climate, we will use waterproof packaging and add plastic film to prevent moisture, water and rust.

Loading: We use the wooden pallet,triangular wood to fix the coil,and the steel wire rope to hold on the both side. That can prevent from the crush injury effectively.
